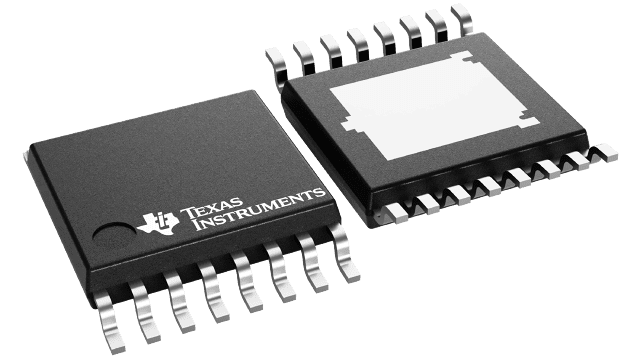

TPS2HB35CQPWPRQ1 Texas Instruments - Yeehing Electronics
40-V, 35-mΩ, 2-ch automotive smart high-side switch with adjustable current limit
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.577 |
| 100 — 249 | 1.302 |
| 250 — 999 | 0.936 |
| 1,000 + | 12.34 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS2HB35CQPWPRQ1 Datasheet |
More Information
The TPS2HB35-Q1 device is a dual-channel smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through a reliable current limit, which, depending on device variant, is adjustable from 2 A to 25 A .
