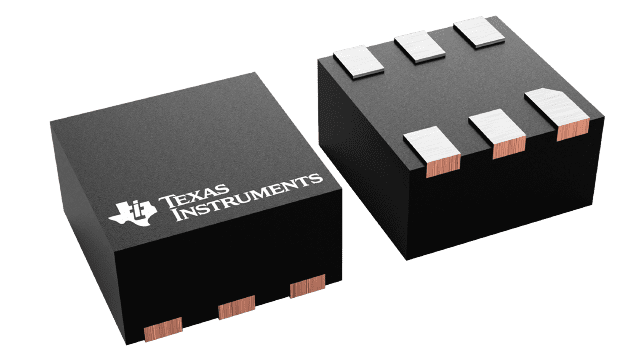

TPS3700DSET Texas Instruments - Yeehing Electronics

High-voltage (18-V) window voltage detector for overvoltage and undervoltage monitoring

Pricing (USD)

Quantity	Unit Price
1 — 99	1.779
100 — 249	1.469
250 — 999	1.055
1,000 +	0.56

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Comparators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WSON-6
Comparator Type	Window
Number of Channels	1 Channel
Output Type	Open Drain
Output Current per Channel	40 mA
Ib - Input Bias Current	-
Vos - Input Offset Voltage	-
Supply Voltage - Max	18 V
Supply Voltage - Min	1.8 V
Operating Supply Current	5.5 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Features	Over Voltage Sense, Window Comparator
Product	Analog Comparators
Series	TPS3700
Brand	Texas Instruments
Shutdown	No Shutdown
Development Kit	TPS3700EVM-114
GBP - Gain Bandwidth Product	-
Product Type	Analog Comparators
Propagation Delay Time	29 us
SR - Slew Rate	-
Factory Pack Quantity	250
Subcategory	Amplifier ICs
Unit Weight	0.000342 oz

For more information, please refer to datasheet

Documents

TPS3700DSET Datasheet

More Information

The TPS3700 wide-supply window voltage detector operates over a 1.8-V to 18-V range. The device has two high-accuracy comparators with an internal 400-mV reference and two open-drain outputs rated to 18 V for over- and undervoltage detection. The TPS3700 can be used as a window voltage detector or as two independent voltage monitors; the monitored voltage can be set with the use of external resistors.
