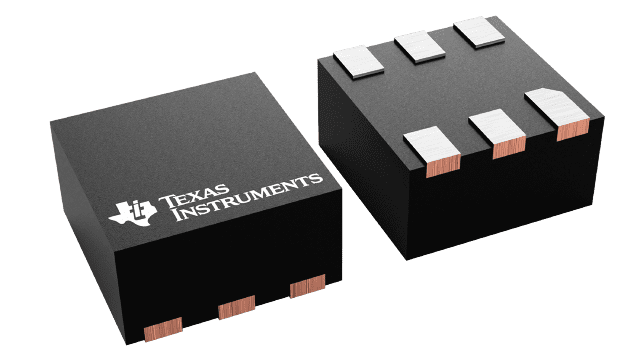

TPS3700QDSERQ1 Texas Instruments - Yeehing Electronics
Automotivexa0high-voltage (18-V) window voltage detector for overvoltage and undervoltage monitoring
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.749 |
| 100 — 249 | 1.445 |
| 250 — 999 | 1.038 |
| 1,000 + | 0.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Comparators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-6 |
| Comparator Type | Window |
| Number of Channels | 2 Channel |
| Output Type | Open Drain |
| Output Current per Channel | 40 mA |
| Ib - Input Bias Current | - |
| Vos - Input Offset Voltage | - |
| Supply Voltage - Max | 18 V |
| Supply Voltage - Min | 1.8 V |
| Operating Supply Current | 7 uA |
| Response Time | - |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Over Voltage Sense, Window Comparator |
| Product | Analog Comparators |
| Series | TPS3700-Q1 |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Analog Comparators |
| Propagation Delay Time | 29 us |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.000120 oz |
For more information, please refer to datasheet
Documents
| TPS3700QDSERQ1 Datasheet |
More Information
The TPS3700-Q1 wide-supply window voltage detector operates over a 1.8 V to 18 V range. The device has two high-accuracy comparators with an internal 400-mV reference and two open-drain outputs rated to 18 V for overvoltage and undervoltage detection. The TPS3700-Q1 device can be used as a window voltage detector or as two independent voltage monitors; the monitored voltage can be set with the use of external resistors. For even wider input voltage capability up to 65 V, see the TPS37A-Q1 or the TPS38A-Q1 devices.
