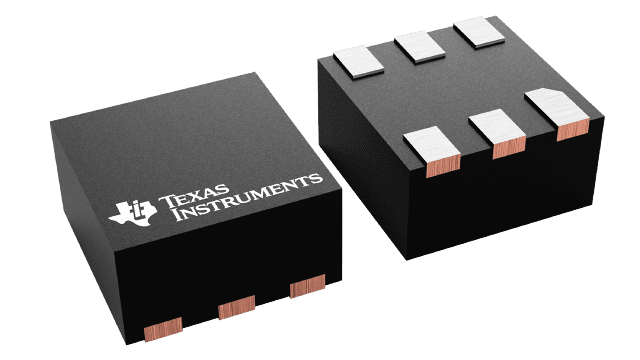

TPS3703A4120DSERQ1 Texas Instruments - Yeehing Electronics

Automotive high-accuracy window supervisor with reset time delay

Pricing (USD)

Quantity	Unit Price
1 — 99	1.696
100 — 249	1.4
250 — 999	1.006
1,000 +	0.53

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Supervisory Circuits
RoHS	Y
Type	Voltage Supervisory
Mounting Style	SMD/SMT
Package / Case	WSON-6
Threshold Voltage	1.2 V
Number of Inputs Monitored	1 Input
Output Type	Active Low, Open Drain
Manual Reset	Manual Reset
Watchdog Timers	No Watchdog
Battery Backup Switching	No Backup
Reset Delay Time	10 ms, 200 ms
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Quiescent Current	4.5 uA
Accuracy	0.25 %
Series	TPS3703-Q1
Packaging	Reel
Brand	Texas Instruments
Chip Enable Signals	No Chip Enable
Development Kit	TPS3703Q1-A4120EVM
Operating Supply Current	4.5 uA
Power Fail Detection	No
Product Type	Supervisory Circuits
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	1.7 V

For more information, please refer to datasheet

Documents

TPS3703A4120DSERQ1 Datasheet

More Information

The TPS3703-Q1 device is an integrated overvoltage (OV) and undervoltage (UV) monitor or reset IC in industry’s smallest 6-pin DSE package. This highly accurate voltage supervisor is ideal for systems that operate on low-voltage supply rails and have narrow margin supply tolerances. Low threshold hysteresis prevent false reset signals when the monitored voltage supply is in its normal range of operation. Internal glitch immunity and noise filters further eliminate false resets resulting from erroneous signals.
