Description

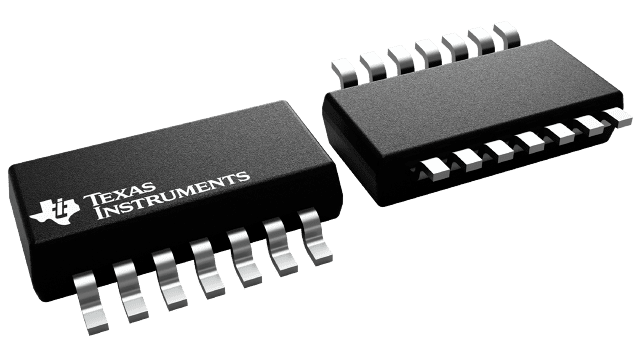

TPS37A010122DYYRQ1 Texas Instruments - Yeehing Electronics
Automotive 65-V window supervisor with ultra-low quiescent current and time-delay function
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.079 |
100 — 249 | 1.821 |
250 — 999 | 1.277 |
1,000 + | 0.72 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TPS37A010122DYYRQ1 Datasheet |
More Information
The TPS37-Q1 is a 65 V input voltage detector with 1 µA IDD, 1% accuracy, and with a fast 10 µs detection time. This device can be connected directly to 12 V / 24 V automotive battery system for continuous monitoring of over (OV) and under (UV) voltage conditions; with its internal resistor divider, it offers the smallest total solution size. Wide hysteresis voltage options are available to ignore cold crank, start-stop and various car battery voltage transients. Built-in hysteresis on the SENSE pins prevents false reset signals when monitoring a supply voltage rail.
