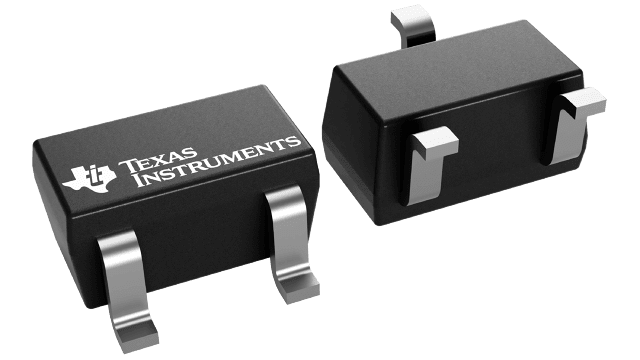

TPS3809I50DBVR Texas Instruments - Yeehing Electronics
3-pin voltage supervisor (reset IC) with active-low, push-pull reset
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.488 |
100 — 249 | 0.332 |
250 — 999 | 0.256 |
1,000 + | 0.12 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Supervisory Circuits |
RoHS | Y |
Type | Voltage Supervisory |
Mounting Style | SMD/SMT |
Package / Case | SOT-23-3 |
Threshold Voltage | 4.55 V |
Number of Inputs Monitored | 1 Input |
Output Type | Active-low,Push-pull |
Manual Reset | No Manual Reset |
Watchdog Timers | No Watchdog |
Battery Backup Switching | No Backup |
Reset Delay Time | 200 ms |
Supply Voltage - Max | 6 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Series | TPS3809I50 |
Packaging | Reel |
Features | Internal Hysteresis |
Height | 1.15 mm |
Length | 2.9 mm |
Operating Temperature Range | - 40 C to + 85 C |
Output Current | 20 mA |
Width | 1.6 mm |
Brand | Texas Instruments |
Overvoltage Threshold | 4.65 V |
Undervoltage Threshold | 4.45 V |
Operating Supply Current | 9 uA |
Operating Supply Voltage | 5 V |
Pd - Power Dissipation | 437 mW |
Product Type | Supervisory Circuits |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 2 V |
Unit Weight | 0.000282 oz |
For more information, please refer to datasheet
Documents
TPS3809I50DBVR Datasheet |
More Information
The TPS3809 family of supervisory circuits provides circuit initialization and timing supervision, primarily for DSPs and processor-based systems. The newer TLV809E device is an alternative with the same pins, functions and electrical parameters.
