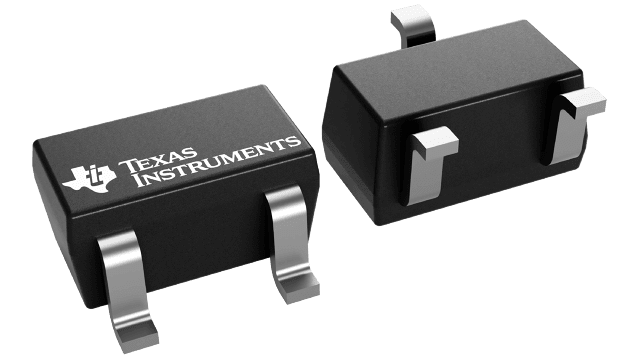

TPS3809I50DBVT Texas Instruments - Yeehing Electronics
3-pin voltage supervisor (reset IC) with active-low, push-pull reset
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.711 |
| 100 — 249 | 0.547 |
| 250 — 999 | 0.403 |
| 1,000 + | 0.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| RoHS | Y |
| Type | Voltage Supervisory |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-23-3 |
| Threshold Voltage | 4.55 V |
| Number of Inputs Monitored | 1 Input |
| Output Type | Active-low,Push-pull |
| Manual Reset | No Manual Reset |
| Watchdog Timers | No Watchdog |
| Battery Backup Switching | No Backup |
| Reset Delay Time | 200 ms |
| Supply Voltage - Max | 6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS3809I50 |
| Packaging | Reel |
| Features | Internal Hysteresis |
| Height | 1.15 mm |
| Length | 2.9 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Current | 20 mA |
| Width | 1.6 mm |
| Brand | Texas Instruments |
| Overvoltage Threshold | 4.65 V |
| Undervoltage Threshold | 4.45 V |
| Chip Enable Signals | No Chip Enable |
| Operating Supply Current | 9 uA |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 437 mW |
| Power Fail Detection | No |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2 V |
| Unit Weight | 0.000282 oz |
For more information, please refer to datasheet
Documents
| TPS3809I50DBVT Datasheet |
More Information
The TPS3809 family of supervisory circuits provides circuit initialization and timing supervision, primarily for DSPs and processor-based systems. The newer TLV809E device is an alternative with the same pins, functions and electrical parameters.
