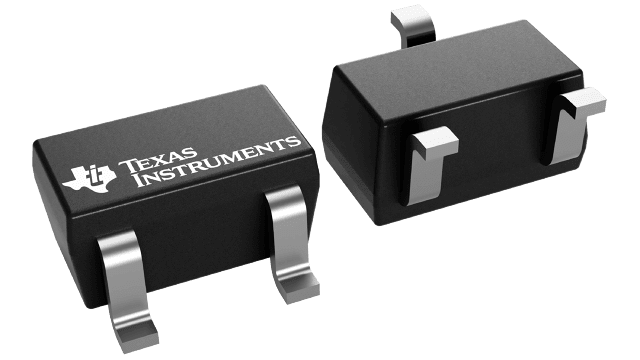

TPS3809J25DBVT


YeeHing #: Y012-TPS3809J25DBVT
Inventory: 5400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS3809J25DBVT Texas Instruments - Yeehing Electronics

3-pin voltage supervisor (reset IC) with active-low, push-pull reset

Pricing (USD)

Quantity Unit Price
1 — 99 0.711
100 — 249 0.547
250 — 999 0.403
1,000 + 0.20

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Supervisory Circuits
RoHS Y
Type Voltage Supervisory
Mounting Style SMD/SMT
Package / Case SOT-23-3
Threshold Voltage 2.25 V
Number of Inputs Monitored 1 Input
Output Type Active-low,Push-pull
Manual Reset No Manual Reset
Watchdog Timers No Watchdog
Battery Backup Switching No Backup
Reset Delay Time 200 ms
Supply Voltage - Max 6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Series TPS3809J25
Packaging Reel
Features Internal Hysteresis
Height 1.15 mm
Length 2.9 mm
Operating Temperature Range - 40 C to + 85 C
Output Current 20 mA
Width 1.6 mm
Brand Texas Instruments
Overvoltage Threshold 2.3 V
Undervoltage Threshold 2.2 V
Operating Supply Current 9 uA
Operating Supply Voltage 2.5 V
Pd - Power Dissipation 437 mW
Product Type Supervisory Circuits
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 2 V
Unit Weight 0.000282 oz

For more information, please refer to datasheet

Documents

TPS3809J25DBVT Datasheet

More Information

The TPS3809 family of supervisory circuits provides circuit initialization and timing supervision, primarily for DSPs and processor-based systems. The newer TLV809E device is an alternative with the same pins, functions and electrical parameters.
