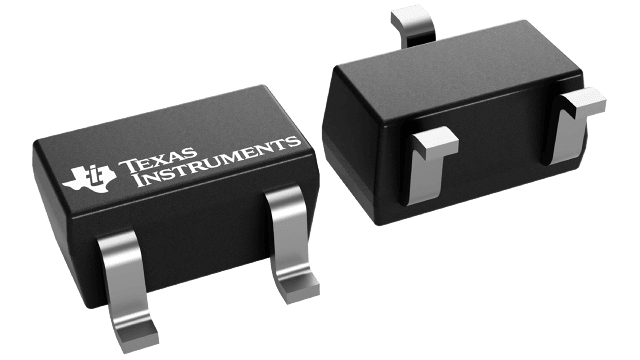

TPS3809L30MDBVREP Texas Instruments - Yeehing Electronics
Enhanced Product 3-Pin Supply Voltage Supervisor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.274 |
| 100 — 249 | 1.878 |
| 250 — 999 | 1.349 |
| 1,000 + | 0.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| RoHS | Y |
| Type | Voltage Supervisory |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-23-3 |
| Threshold Voltage | 2.64 V |
| Number of Inputs Monitored | 1 Input |
| Output Type | Active-low,Push-pull |
| Manual Reset | No Manual Reset |
| Watchdog Timers | No Watchdog |
| Battery Backup Switching | No Backup |
| Reset Delay Time | 200 ms |
| Supply Voltage - Max | 6 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS3809L30-EP |
| Packaging | Reel |
| Height | 1.15 mm |
| Length | 2.9 mm |
| Operating Temperature Range | - 55 C to + 125 C |
| Width | 1.6 mm |
| Brand | Texas Instruments |
| Overvoltage Threshold | 2.7 V |
| Undervoltage Threshold | 2.58 V |
| Operating Supply Current | 25 uA |
| Operating Supply Voltage | 3 V |
| Pd - Power Dissipation | 437 mW |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2 V |
| Part # Aliases | V62/06636-01XE |
| Unit Weight | 0.000282 oz |
For more information, please refer to datasheet
Documents
| TPS3809L30MDBVREP Datasheet |
More Information
The TPS3809 family of supervisory circuits provides circuit initialization and timing supervision, primarily for DSPs and processor-based systems.
