Texas Instruments

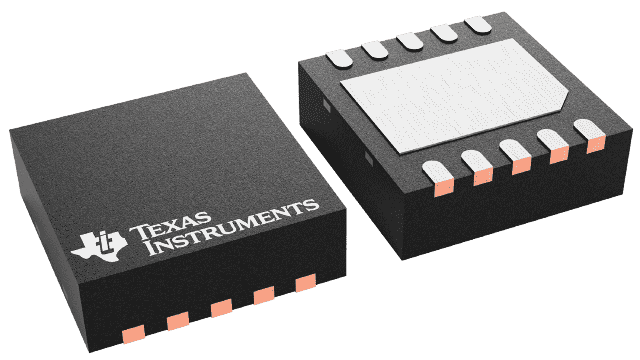

TPS3850G25QDRCRQ1
TPS3850G25QDRCRQ1
Regular price
$0.59 USD
Regular price
Sale price
$0.59 USD
Unit price
per
Couldn't load pickup availability
TPS3850G25QDRCRQ1 Texas Instruments - Yeehing Electronics
Automotive, window supervisor for OV & UV monitoring with window watchdog timer & programmable delay
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.902 |
| 100 — 249 | 1.571 |
| 250 — 999 | 1.128 |
| 1,000 + | 0.59 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| RoHS | Y |
| Type | Voltage Supervisory |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-10 |
| Threshold Voltage | 2.5 V |
| Number of Inputs Monitored | 1 Input |
| Output Type | Active-low,Open-drain |
| Manual Reset | No Manual Reset |
| Watchdog Timers | Watchdog |
| Battery Backup Switching | No Backup |
| Reset Delay Time | Programmable |
| Supply Voltage - Max | 6.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Accuracy | 0.8 % |
| Series | TPS3850-Q1 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Over Voltage Sense, Watchdog Disable, Watchdog Timer, Window Comparator, Window Watchdog |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Chip Enable Signals | No Chip Enable |
| Development Kit | TPS3850EVM-781 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 10 uA |
| Power Fail Detection | No |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 1.6 V |
| Unit Weight | 0.000695 oz |
For more information, please refer to datasheet
Documents
| TPS3850G25QDRCRQ1 Datasheet |
More Information
The TPS3850-Q1 combines a precision voltage supervisor with a programmable window watchdog timer. The TPS3850-Q1 window comparator achieves 0.8% accuracy (–40°C to +125°C) for both overvoltage (VIT+(OV)) and undervoltage (VIT–(UV)) thresholds on the SENSE pin. The TPS3850-Q1 also includes accurate hysteresis on both thresholds, making the device ideal for use with tight tolerance systems. The supervisor RESET delay can be set by factory-programmed default delay settings, or programmed by an external capacitor. The factory-programmed RESET delay features a 9.5% accuracy, high-precision delay timing.
