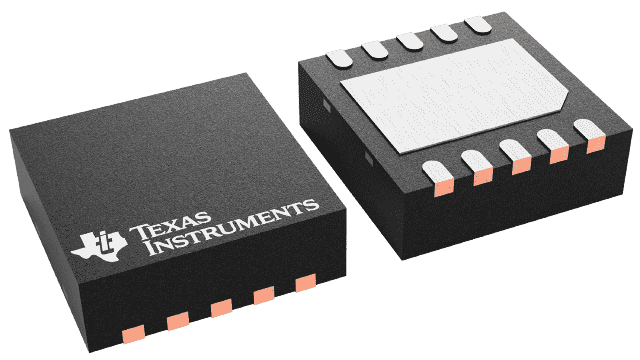

TPS3850H12QDRCRQ1 Texas Instruments - Yeehing Electronics

Automotive, window supervisor for OV & UV monitoring with window watchdog timer & programmable delay

Pricing (USD)

Quantity	Unit Price
1 — 99	1.902
100 — 249	1.571
250 — 999	1.128
1,000 +	0.59

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS3850H12QDRCRQ1 Datasheet

More Information

The TPS3850-Q1 combines a precision voltage supervisor with a programmable window watchdog timer. The TPS3850-Q1 window comparator achieves 0.8% accuracy (–40°C to +125°C) for both overvoltage (VIT+(OV)) and undervoltage (VIT–(UV)) thresholds on the SENSE pin. The TPS3850-Q1 also includes accurate hysteresis on both thresholds, making the device ideal for use with tight tolerance systems. The supervisor RESET delay can be set by factory-programmed default delay settings, or programmed by an external capacitor. The factory-programmed RESET delay features a 9.5% accuracy, high-precision delay timing.
