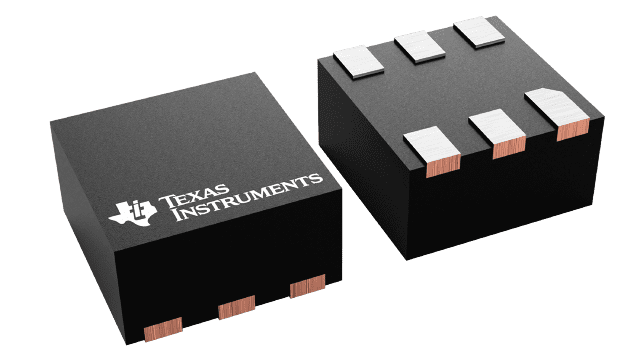

TPS389012DSET Texas Instruments - Yeehing Electronics

Low-quiescent current 1% accuracy supervisor with programmable delay

Pricing (USD)

Quantity	Unit Price
1 — 99	1.416
100 — 249	1.169
250 — 999	0.84
1,000 +	0.44

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Supervisory Circuits
RoHS	Y
Type	Voltage Supervisory
Mounting Style	SMD/SMT
Package / Case	WSON-6
Threshold Voltage	1.2 V
Number of Inputs Monitored	1 Input
Output Type	Active Low, Open Drain
Manual Reset	Manual Reset
Reset Delay Time	25 us to 30 s
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Quiescent Current	2.1 uA
Accuracy	1 %
Series	TPS3890
Packaging	Reel
Features	Active Low Enable, Manual Reset
Operating Temperature Range	- 40 C to + 125 C
Brand	Texas Instruments
Operating Supply Current	6.5 uA
Product Type	Supervisory Circuits
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	1.5 V
Unit Weight	0.000180 oz

For more information, please refer to datasheet

Documents

TPS389012DSET Datasheet

More Information

The TPS3890 is a precision voltage supervisor with low-quiescent current that monitors system voltages as low as 1.15 V, asserting an open-drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output remains low for the user-adjustable delay time after the SENSE voltage and manual reset (MR) return above the respective thresholds. The TPS3890 family uses a precision reference to achieve 1% threshold accuracy. The reset delay time can be user-adjusted between 40 µs and 30 s by connecting the CT pin to an external capacitor. The TPS3890 has a very low quiescent current of 2.1 µA and is available in a small 1.5-mm × 1.5-mm package, making the device well-suited for battery-powered and space-constrained applications. The device is fully specified over a temperature range of –40°C to +125°C (TJ).
