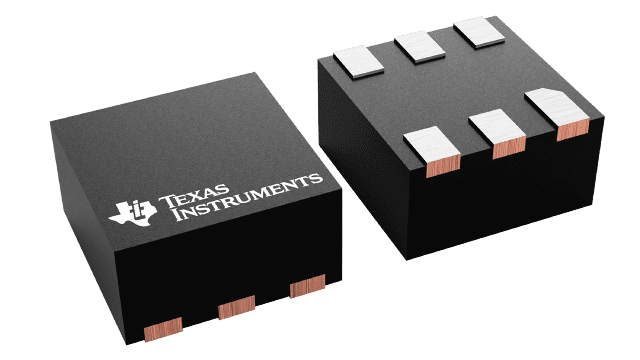

TPS389030QDSERQ1 Texas Instruments - Yeehing Electronics
Automotive low-quiescent current 1% accuracy supervisor with programmable delay
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.391 |
| 100 — 249 | 1.149 |
| 250 — 999 | 0.825 |
| 1,000 + | 2.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| RoHS | Y |
| Type | Voltage Supervisory |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-6 |
| Threshold Voltage | 3 V |
| Number of Inputs Monitored | 1 Input |
| Output Type | Active Low, Open Drain |
| Manual Reset | Manual Reset |
| Watchdog Timers | No Watchdog |
| Battery Backup Switching | No Backup |
| Reset Delay Time | 25 us to 30 s |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Accuracy | 1 % |
| Series | TPS3890-Q1 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Active Low Enable, Manual Reset |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Chip Enable Signals | No Chip Enable |
| Operating Supply Current | 2.29 uA |
| Power Fail Detection | No |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 1.5 V |
For more information, please refer to datasheet
Documents
| TPS389030QDSERQ1 Datasheet |
More Information
The TPS3890-Q1 is a precision voltage supervisor with low-quiescent current that monitors system voltages as low as 1.15 V, asserting an open-drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output remains low for the user-adjustable delay time after the SENSE voltage and manual reset (MR) return above the respective thresholds. The TPS3890-Q1 family uses a precision reference to achieve 1% threshold accuracy. The reset delay time can be user-adjusted between 25 µs and 30 s by connecting the CT pin to an external capacitor. The TPS3890-Q1 has a very low quiescent current of 2.1 µA and is available in a small 1.5-mm × 1.5-mm package, making the device well-suited for battery-powered and space-constrained applications. The device is fully specified over a temperature range of –40°C to +125°C (TJ).
