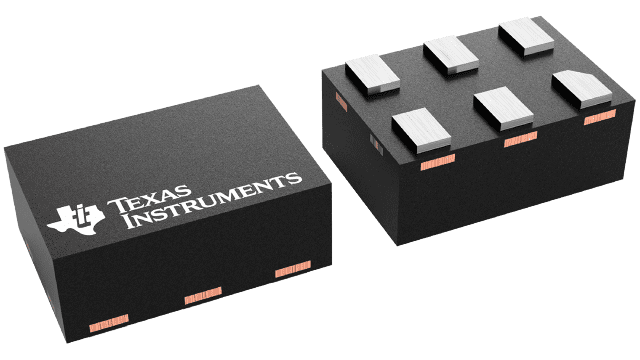

TPS3897PDRYR Texas Instruments - Yeehing Electronics
Single-channel, ultra-small, adjustable supervisor with active-high, open-drain output
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.652 |
100 — 249 | 0.502 |
250 — 999 | 0.369 |
1,000 + | 0.21 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -40 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 5,000 |
Package | Pins | USON (DRY) | 6 |
For more information, please refer to datasheet
Documents
TPS3897PDRYR Datasheet |
More Information
The TPS3895, TPS3896, TPS3897, and TPS3898 devices (TPS389x) are a family of very small supervisory circuits that monitor voltages greater than 500 mV with a 0.25% (typical) threshold accuracy and offer adjustable delay time using external capacitors. The TPS389x family also has a logic enable pin (ENABLE or ENABLE) to power on and off the output. With the TPS3895, for example, when the input voltage pin (SENSE) rises above the threshold, and the ENABLE pin is high, then the output pin (SENSE_OUT) goes high after the capacitor-adjustable delay time. When SENSE falls below the threshold or ENABLE is low, then SENSE_OUT goes low.
