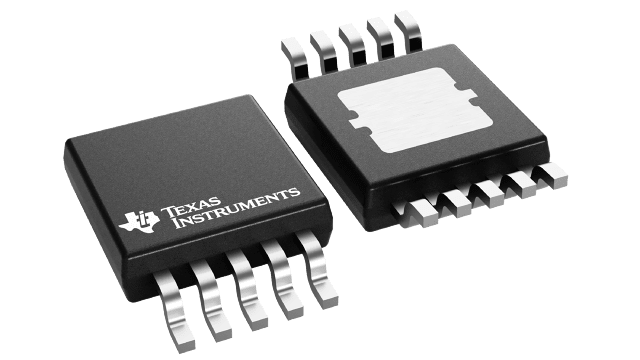

TPS40009DGQR Texas Instruments - Yeehing Electronics
2.25V-5.5V, 600 kHz, Synchronous Buck Controller, Source/ Sink, Prebias Operation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.528 |
| 100 — 249 | 1.262 |
| 250 — 999 | 0.906 |
| 1,000 + | 0.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Input Voltage | 2.25 V to 5.5 V |
| Output Voltage | 0.7 V to 4 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-10 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TPS40009 |
| Type | DC/DC Controller (External Switch) |
| Brand | Texas Instruments |
| Development Kit | TPS40009EVM-001 |
| Operating Supply Current | 1.5 mA |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000829 oz |
For more information, please refer to datasheet
Documents
| TPS40009DGQR Datasheet |
More Information
The TPS4000x are controllers for low-voltage, non-isolated synchronous buck regulators. These controllers drive an N-channel MOSFET for the primary buck switch, and an N-channel MOSFET for the synchronous rectifier switch, thereby achieving very high-efficiency power conversion. In addition, the device controls the delays from main switch off to rectifier turn-on and from rectifier turn-off to main switch turn-on in such a way as to minimize diode losses (both conduction and recovery) in the synchronous rectifier with TIs proprietary Predictive Gate Drive technology. The reduction in these losses is significant and increases efficiency. For a given converter power level, smaller FETs can be used, or heat sinking can be reduced or even eliminated.
