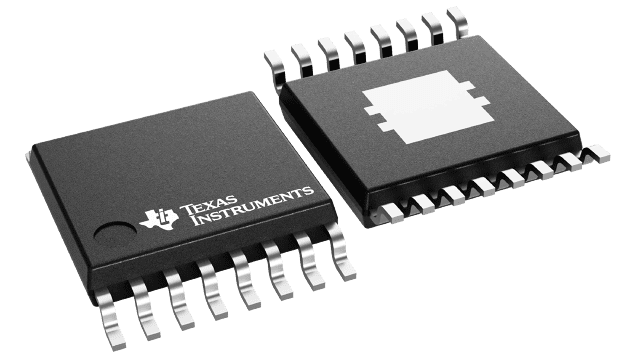

TPS40056PWP Texas Instruments - Yeehing Electronics
Wide Vin (10V-40V) Synchronous Buck DC/DC Controller with Tracking
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.779 |
| 100 — 249 | 3.312 |
| 250 — 999 | 2.322 |
| 1,000 + | 1.31 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Buck |
| Number of Outputs | 1 Output |
| Input Voltage | 8 V to 40 V |
| Output Voltage | 700 mV |
| Output Current | 0 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-16 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | VTT |
| Series | TPS40056 |
| Type | Step-Down Controller |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.5 mA |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 90 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002212 oz |
For more information, please refer to datasheet
Documents
| TPS40056PWP Datasheet |
More Information
The TPS40056 is part of a family of high-voltage, wide input, synchronous, step-down converters. The TPS40056 offers design flexibility with a variety of user programmable functions, including soft-start, operating frequency, high-side current limit, and loop compensation. The TPS40056 is also synchronizable to an external supply. It incorporates MOSFET gate drivers for external N-channel high-side and synchronous rectifier (SR) MOSFETs. Gate drive logic incorporates anti-cross conduction circuitry to prevent simultaneous high-side and synchronous rectifier conduction. The externally programmable short circuit protection provides pulse-by-pulse current limit, as well as hiccup mode operation utilizing an internal fault counter for longer duration overloads.
