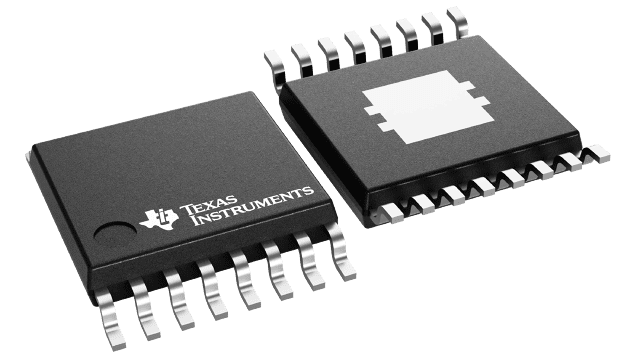

TPS40056PWPR Texas Instruments - Yeehing Electronics

Wide Vin (10V-40V) Synchronous Buck DC/DC Controller with Tracking

Pricing (USD)

Quantity	Unit Price
1 — 99	3.149
100 — 249	2.759
250 — 999	1.935
1,000 +	0.89

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Buck
Number of Outputs	1 Output
Input Voltage	8 V to 40 V
Output Voltage	700 mV
Output Current	0 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-16
Packaging	Reel
Operating Temperature Range	- 40 C to + 85 C
Output Type	VTT
Series	TPS40056
Type	Step-Down Controller
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	1.5 mA
Product Type	Switching Controllers
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002212 oz

For more information, please refer to datasheet

Documents

TPS40056PWPR Datasheet

More Information

The TPS40056 is part of a family of high-voltage, wide input, synchronous, step-down converters. The TPS40056 offers design flexibility with a variety of user programmable functions, including soft-start, operating frequency, high-side current limit, and loop compensation. The TPS40056 is also synchronizable to an external supply. It incorporates MOSFET gate drivers for external N-channel high-side and synchronous rectifier (SR) MOSFETs. Gate drive logic incorporates anti-cross conduction circuitry to prevent simultaneous high-side and synchronous rectifier conduction. The externally programmable short circuit protection provides pulse-by-pulse current limit, as well as hiccup mode operation utilizing an internal fault counter for longer duration overloads.
