Description

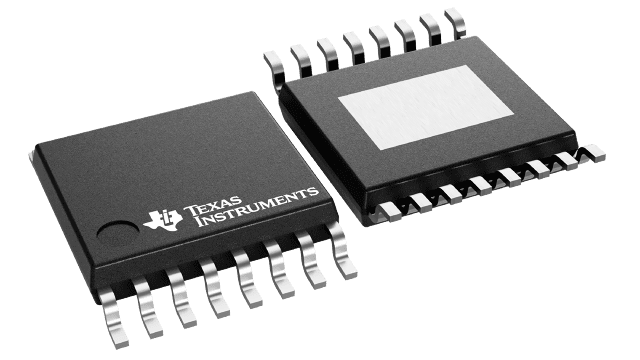

TPS40077PWP Texas Instruments - Yeehing Electronics
4.5-V to 28-V, synchronous buck controller with voltage feed forward in HTSSOP package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.533 |
| 100 — 249 | 2.22 |
| 250 — 999 | 1.556 |
| 1,000 + | 1.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Switching Frequency | 1000 kHz |
| Input Voltage | 4.5 V to 28 V |
| Output Voltage | 0.7 V |
| Output Current | 20 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-16 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TPS40077 |
| Type | DC/DC Controller |
| Brand | Texas Instruments |
| Development Kit | TPS40077EVM-001 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.5 mA |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002212 oz |
For more information, please refer to datasheet
Documents
| TPS40077PWP Datasheet |
More Information
The TPS40077 is a mid-voltage, wide-input (4.5-V to 28-V), synchronous, step-down controller, offering design flexibility for a variety of user-programmable functions, including soft start, undervoltage lockout (UVLO), operating frequency, voltage feed-forward, and high-side, FET-sensed, short-circuit protection.
