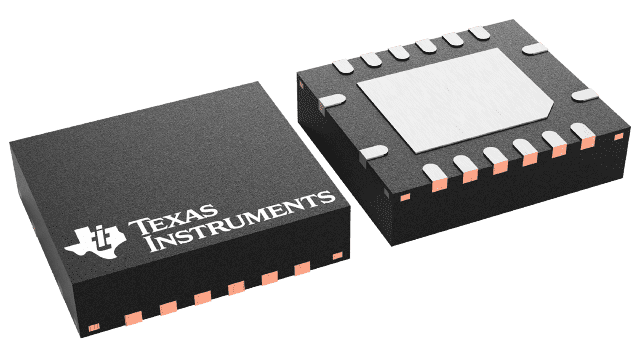

TPS40197RGYR Texas Instruments - Yeehing Electronics
4.5-V to 14-V, 6-A synchronous buck controller with 4-bit VID interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.022 |
| 100 — 249 | 2.648 |
| 250 — 999 | 1.857 |
| 1,000 + | 1.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Buck |
| Number of Outputs | 1 Output |
| Switching Frequency | 520 kHz |
| Output Voltage | 4.5 V to 14 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TPS40197 |
| Type | DC/DC Controllers (External Switch) |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2.5 mA |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001312 oz |
For more information, please refer to datasheet
Documents
| TPS40197RGYR Datasheet |
More Information
The TPS40197 is a synchronous buck controller that operates from 4.5 V to 14 V input supply nominally. The controller implements voltage-mode control architecture with the switching frequency fixed at 520 kHz. The higher switching frequency facilitates the use of smaller inductor and output capacitors, thereby providing a compact power-supply solution. An adaptive anti-cross conduction scheme is used to prevent shoot through current in the power FETs.
