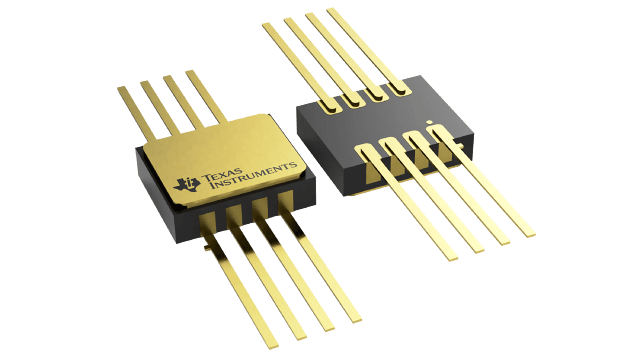

TPS40200SHKJ Texas Instruments - Yeehing Electronics
High Temperature Wide Input Non-Synchronous Buck DC/DC Controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 174.609 |
| 100 — 249 | 169.358 |
| 250 — 999 | 141.0 |
| 1,000 + | 91.90 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | N |
| Number of Outputs | 1 Output |
| Switching Frequency | 35 kHz to 500 kHz |
| Duty Cycle - Max | 93 % |
| Input Voltage | 5.5 V to 52 V |
| Output Voltage | 0.7 V to 45.2 V |
| Output Current | 3 A |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 210 C |
| Mounting Style | SMD/SMT |
| Package / Case | CFP-8 |
| Packaging | Tube |
| Operating Temperature Range | - 55 C to + 210 C |
| Series | TPS40200-HT |
| Brand | Texas Instruments |
| Operating Supply Current | 1.5 mA |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 1 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| TPS40200SHKJ Datasheet |
More Information
The TPS40200 is a flexible nonsynchronous controller with a built-in 200-mA driver for P-channel FETs. The circuit operates with inputs up to 52 V, with a power-saving feature that turns off driver current once the external FET has been fully turned on. This feature extends the flexibility of the device, allowing it to operate with an input voltage up to 52 V, without dissipating excessive power. The circuit operates with voltage-mode feedback and has feed-forward input-voltage compensation that responds instantly to input-voltage change. The integral 700-mV reference is trimmed to 2%, providing the means to accurately control low voltages. Clock frequency, soft start, and overcurrent limit each are easily programmed by a single, external component. The part has undervoltage lockout, and can be easily synchronized to other controllers or a system clock to satisfy sequencing and/or noise-reduction requirements.
