Texas Instruments
TPS40210MDRCTEP
TPS40210MDRCTEP
Regular price
$1.69 USD
Regular price
Sale price
$1.69 USD
Unit price
per
Couldn't load pickup availability

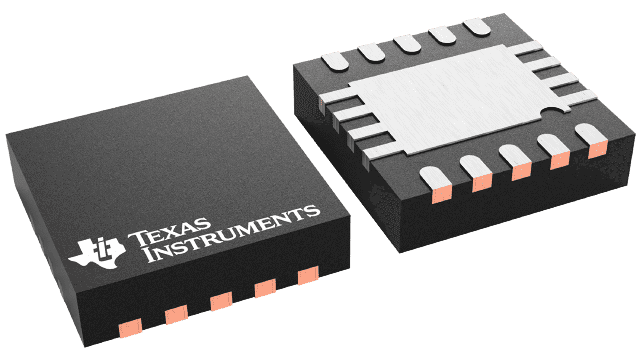

TPS40210MDRCTEP Texas Instruments - Yeehing Electronics
Enhanced Product 4.5-V to 52-V Input Current Mode Boost Controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.001 |
| 100 — 249 | 3.495 |
| 250 — 999 | 2.694 |
| 1,000 + | 1.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Boost |
| Number of Outputs | 1 Output |
| Switching Frequency | 35 kHz to 1 MHz |
| Duty Cycle - Max | 67.3 % |
| Input Voltage | 4.5 V to 52 V |
| Output Voltage | 7 V to 9 V |
| Output Current | 400 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-10 |
| Packaging | Reel |
| Description/Function | Enhanced product 4.5 V to 52 V input current mode boost controller |
| Isolation | Non-Isolated |
| Operating Temperature Range | - 55 C to + 125 C |
| Product | Current Mode PWM Controllers |
| Series | TPS40210-EP |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.5 mA |
| Operating Supply Voltage | 4.5 V to 52 V |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000871 oz |
For more information, please refer to datasheet
Documents
| TPS40210MDRCTEP Datasheet |
More Information
The TPS40210-EP is a wide-input voltage (4.5 to 52 V), nonsynchronous boost controller. The device is suitable for topologies which require a grounded source N-channel FET including boost, flyback, SEPIC, and various LED driver applications. The device features include programmable soft-start, overcurrent protection with automatic retry, and programmable oscillator frequency. Current mode control provides improved transient response and simplified loop compensation.
