Texas Instruments
TPS40210SHKK
TPS40210SHKK
Regular price
$65.87 USD
Regular price
Sale price
$65.87 USD
Unit price
per
Couldn't load pickup availability

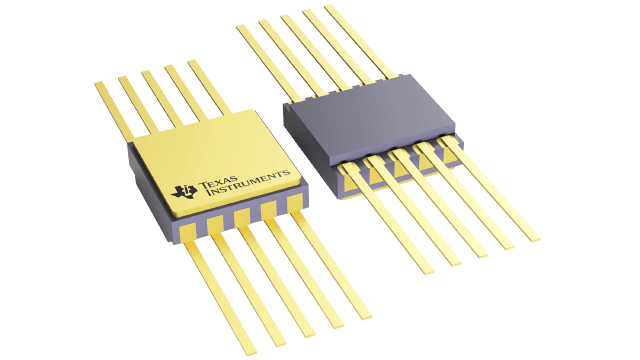

TPS40210SHKK Texas Instruments - Yeehing Electronics
High Temperature Wide Input Range Current Mode Boost Controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 125.15 |
| 100 — 249 | 121.386 |
| 250 — 999 | 101.061 |
| 1,000 + | 65.87 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Boost |
| Number of Outputs | 1 Output |
| Switching Frequency | 600 kHz |
| Duty Cycle - Max | 67.3 % |
| Output Voltage | 24 V |
| Output Current | 1 A |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 210 C |
| Mounting Style | SMD/SMT |
| Package / Case | CFP-10 |
| Packaging | Tube |
| Operating Temperature Range | - 55 C to + 210 C |
| Series | TPS40210-HT |
| Type | Current Mode PWM Controllers |
| Brand | Texas Instruments |
| Operating Supply Current | 10 uA |
| Operating Supply Voltage | 5.5 V to 52 V |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 1 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| TPS40210SHKK Datasheet |
More Information
The TPS40210 is a wide input voltage (5.5 V to 52 V) non-synchronous boost controller. It is suitable for topologies that require a grounded source N-channel FET, including boost, flyback, SEPIC, and various LED driver applications. Device features include programmable soft start, overcurrent protection with automatic retry, and programmable oscillator frequency. Current-mode control provides improved transient response and simplified loop compensation.
