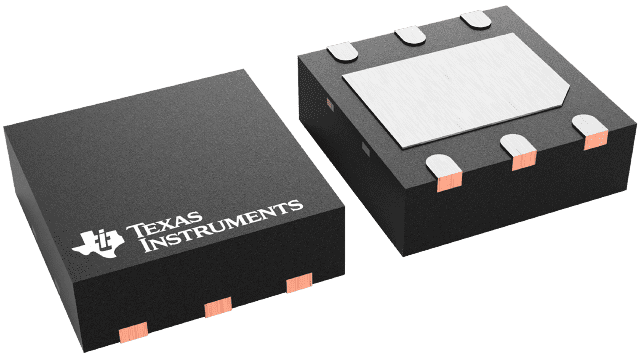

TPS40222DRPR Texas Instruments - Yeehing Electronics
1.6A, 1.25-MHz Buck Converter in a 3 mm SON Package
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.747 |
100 — 249 | 1.443 |
250 — 999 | 1.037 |
1,000 + | 0.45 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | VSON-6 |
Output Voltage | Adjustable |
Output Current | 1.6 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 8 V |
Topology | Buck |
Input Voltage MIN | 4.5 V |
Switching Frequency | 1.25 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | TPS40222 |
Packaging | Reel |
Input Voltage | 4.5 V to 8 V |
Operating Temperature Range | - 40 C to + 125 C |
Product | Voltage Regulators |
Type | Step-Down Switching Voltage Regulator |
Brand | Texas Instruments |
Development Kit | TPS40222EVM-001 |
Moisture Sensitive | Yes |
Operating Supply Current | 1 mA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.000907 oz |
For more information, please refer to datasheet
Documents
TPS40222DRPR Datasheet |
More Information
The TPS40222 is a fixed-frequency, current-mode, non-synchronous buck converter optimized for applications powered by a 5-V distributed source. With internally determined operating frequency, soft-start time, and control loop compensation, the TPS40222 provides many features with a minimum of external components.
