Texas Instruments
TPS40400RHLR
TPS40400RHLR
Regular price
$1.19 USD
Regular price
Sale price
$1.19 USD
Unit price
per
Couldn't load pickup availability

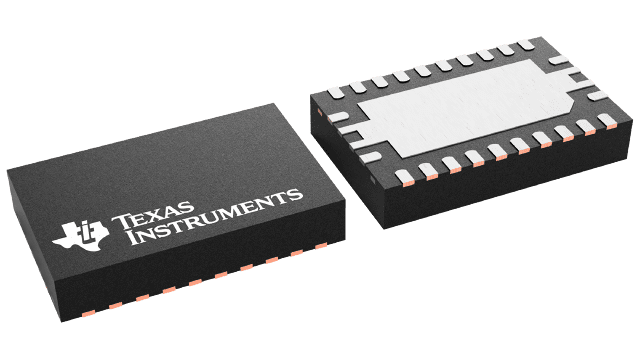

TPS40400RHLR Texas Instruments - Yeehing Electronics
3-V to 20-V, 30-A, synchronous buck controller with PMBus™, including Telemetry
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.128 |
| 100 — 249 | 2.55 |
| 250 — 999 | 2.004 |
| 1,000 + | 1.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Switching Frequency | 300 kHz |
| Input Voltage | 8 V to 14 V |
| Output Voltage | 600 mV |
| Output Current | 20 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | TPS40400 |
| Brand | Texas Instruments |
| Development Kit | TPS40400EVM-351 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 6 mA |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001926 oz |
For more information, please refer to datasheet
Documents
| TPS40400RHLR Datasheet |
More Information
The TPS40400 is a cost-optimized flexible synchronous buck controller that operates from a nominal 3-V to 20-V supply. This controller is an analog PWM controller that allows programming and monitoring through the PMBus™ interface. Flexible features found on this device include programmable soft-start time, programmable short circuit limit, and programmable undervoltage lockout (UVLO).
