Texas Instruments
TPS40400RHLT
TPS40400RHLT
Regular price
$1.63 USD
Regular price
Sale price
$1.63 USD
Unit price
per
Couldn't load pickup availability

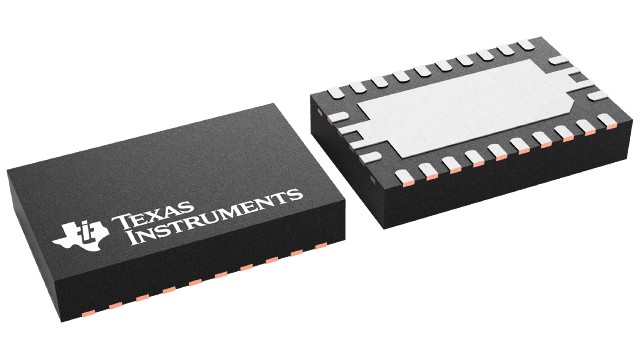

TPS40400RHLT Texas Instruments - Yeehing Electronics
3-V to 20-V, 30-A, synchronous buck controller with PMBus™, including Telemetry
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.754 |
| 100 — 249 | 3.06 |
| 250 — 999 | 2.405 |
| 1,000 + | 1.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Switching Frequency | 200 kHz to 2 MHz |
| Duty Cycle - Max | 90 % |
| Input Voltage | 3 V to 20 V |
| Output Voltage | - 0.3 V to 30 V |
| Output Current | 1 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | TPS40400 |
| Brand | Texas Instruments |
| Development Kit | TPS40400EVM-351 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 6 mA |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001926 oz |
For more information, please refer to datasheet
Documents
| TPS40400RHLT Datasheet |
More Information
The TPS40400 is a cost-optimized flexible synchronous buck controller that operates from a nominal 3-V to 20-V supply. This controller is an analog PWM controller that allows programming and monitoring through the PMBus™ interface. Flexible features found on this device include programmable soft-start time, programmable short circuit limit, and programmable undervoltage lockout (UVLO).
