Texas Instruments
TPS40422RSBT
TPS40422RSBT
Regular price
$1.75 USD
Regular price
Sale price
$1.75 USD
Unit price
per
Couldn't load pickup availability

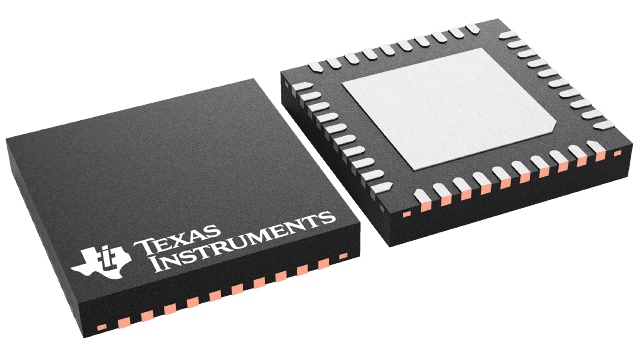

TPS40422RSBT Texas Instruments - Yeehing Electronics
Dual Output or Multiphase Synchronous Buck Controller with PMBus
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.594 |
| 100 — 249 | 3.746 |
| 250 — 999 | 2.944 |
| 1,000 + | 1.75 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Buck |
| Number of Outputs | 2 Output |
| Switching Frequency | 200 kHz to 1 MHz |
| Duty Cycle - Max | 90 % |
| Input Voltage | 4.5 V to 20 V |
| Output Voltage | 600 mV to 5.6 V |
| Output Current | 120 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-40 |
| Packaging | Reel |
| Isolation | Non-Isolated |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | Programmable |
| Product | Switching Controllers |
| Series | TPS40422 |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Fall Time | 12 ns |
| Moisture Sensitive | Yes |
| Operating Supply Current | 18 mA |
| Operating Supply Voltage | 4.5 V to 20 V |
| Product Type | Switching Controllers |
| Rise Time | 15 ns |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| TPS40422RSBT Datasheet |
More Information
The TPS40422 is a dual-output PMBus protocol, synchronous buck controller. It can be configured also for a single, two-phase output.
