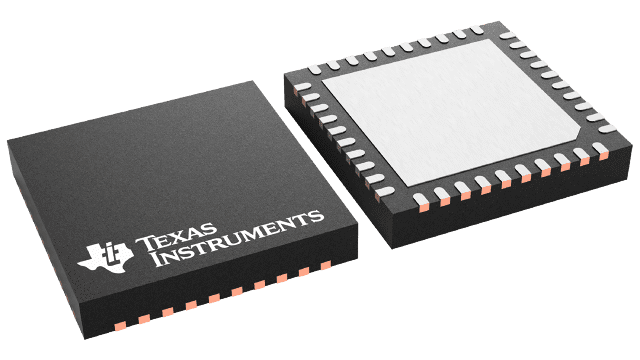

TPS40428RHAT Texas Instruments - Yeehing Electronics
Dual Output, 2-Phase, Stackable PMBus Synchronous Buck Driverless Controller
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.75 |
100 — 249 | 5.896 |
250 — 999 | 4.546 |
1,000 + | 2.85 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Controllers |
RoHS | Y |
Topology | Buck |
Number of Outputs | 2 Output |
Switching Frequency | 200 kHz to 1.5 MHz |
Duty Cycle - Max | 50 % |
Input Voltage | 20 V |
Output Voltage | 3.3 V, 5 V |
Output Current | 40 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-40 |
Packaging | Reel |
Description/Function | PMBus, synchronous buck, driverless controller |
Isolation | Isolated |
Operating Temperature Range | - 40 C to + 125 C |
Output Type | Open Drain |
Product | Switching Controllers |
Series | TPS40428 |
Brand | Texas Instruments |
Shutdown | Shutdown |
Fall Time | 300 ns |
Moisture Sensitive | Yes |
Operating Supply Current | 18 mA |
Operating Supply Voltage | 20 V |
Product Type | Switching Controllers |
Rise Time | 300 ns |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.003668 oz |
For more information, please refer to datasheet
Documents
TPS40428RHAT Datasheet |
More Information
The TPS40428 device is a PMBus, synchronous buck, driverless controller. It operates in smart power mode with factory default settings, and it can operate in non-smart power mode after PMBus programing and power reboot. It can be configured for dual-output or 2-phase operation. It is also stackable up to 4 phases to support load current as high as 120 A. Interleaved phase shift for 2-. 3-, or 4-phases reduce the input and output ripples therefore reducing input and output capacitance.
