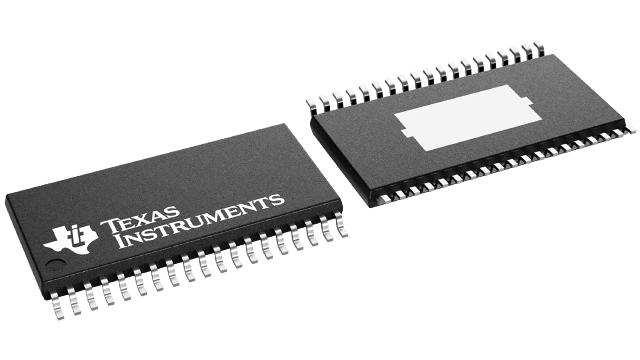

TPS43331QDAPRQ1 Texas Instruments - Yeehing Electronics
Automotive 5V to 30V Dual LDO & Dual Synchronous Buck Controller
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 5.89 |
100 — 249 | 4.802 |
250 — 999 | 3.774 |
1,000 + | 2.24 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-38 |
Output Voltage | 10 V |
Output Current | 4 A |
Number of Outputs | 4 Output |
Input Voltage MAX | 40 V |
Topology | Buck |
Input Voltage MIN | 5 V |
Switching Frequency | 400 kHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Qualification | AEC-Q100 |
Series | TPS43331-Q1 |
Packaging | Reel |
Input Voltage | 5 V to 40 V |
Operating Temperature Range | - 40 C to + 125 C |
Product | Voltage Regulators |
Type | Voltage Converter |
Brand | Texas Instruments |
Development Kit | TPS43331EVM |
Moisture Sensitive | Yes |
Operating Supply Current | 65 uA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 2000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.004586 oz |
For more information, please refer to datasheet
Documents
TPS43331QDAPRQ1 Datasheet |
More Information
The TPS43331-Q1 is a multi-rail output voltage regulator, with two synchronous switch mode controllers and two linear regulators. In addition, there is a reverse protected high side switch and voltage supervisor for monitoring the standby regulator and input voltage. The regulator outputs and high side switch are controlled either by discrete inputs for certain outputs and serial interface using the I2C configuration for outputs not controlled by discrete inputs.
