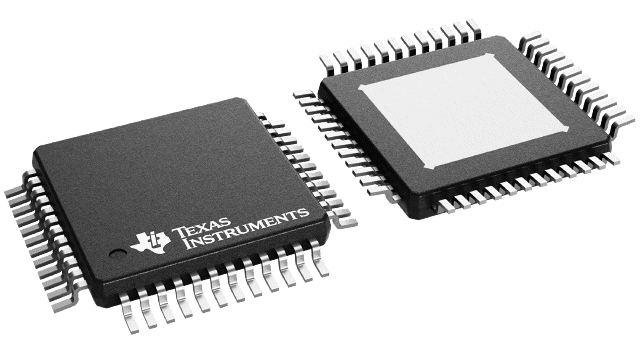

TPS43340QPHPRQ1


YeeHing #: Y012-TPS43340QPHPRQ1
Inventory: 5600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS43340QPHPRQ1 Texas Instruments - Yeehing Electronics

Automotive 4V to 40V dual synchronous buck controller, 2A buck converter, and 300mA LDO

Pricing (USD)

Quantity Unit Price
1 — 99 6.9
100 — 249 5.625
250 — 999 4.421
1,000 + 2.74

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case HTQFP-48
Output Voltage 0.9 V to 11 V
Output Current 2 A
Number of Outputs 4 Output
Input Voltage MAX 40 V
Topology Buck
Input Voltage MIN 4 V
Switching Frequency 400 kHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Qualification AEC-Q100
Series TPS43340-Q1
Packaging Reel
Input Voltage 4 V to 40 V
Operating Temperature Range - 40 C to + 125 C
Product Voltage Regulators
Type Voltage Converter
Brand Texas Instruments
Development Kit TPS43340EVM
Moisture Sensitive Yes
Operating Supply Current 30 uA
Product Type Switching Voltage Regulators
Factory Pack Quantity 1000
Subcategory PMIC - Power Management ICs
Unit Weight 0.004744 oz

For more information, please refer to datasheet

Documents

TPS43340QPHPRQ1 Datasheet

More Information

The TPS43340-Q1 is a quad rail power supply featuring two synchronous Buck Controller with 0.6-A gate drive, one synchronous 2-A Buck Converter and a 300-mA LDO with low quiescent current. The device is designed to power the entire system including MCU and DSP straight from the car battery respectively input voltages up to 40 V. The device features integrated short-circuit and overcurrent protection on the gate-drive outputs for the buck regulator controllers and independent current-foldback control for each buck regulator supply during regulator output short to ground. Each output supply incorporates a soft start to ensure that on initial power up these regulated outputs are not in current limit. Implementation of reset delay on power up allows the outputs of Buck1, Buck2, Buck3 and the linear regulator to get to stable regulation. An external capacitor sets the delay to a maximum range of 300 ms. Each power-supply output has adjustable output voltage based on the external resistor-network settings. The device has sequencing control during power up and power down of the output rails, based on the enable-and-disable control or soft start.
