Texas Instruments
TPS50301SHKH
TPS50301SHKH
Regular price
$1,512.00 USD
Regular price
Sale price
$1,512.00 USD
Unit price
per
Couldn't load pickup availability

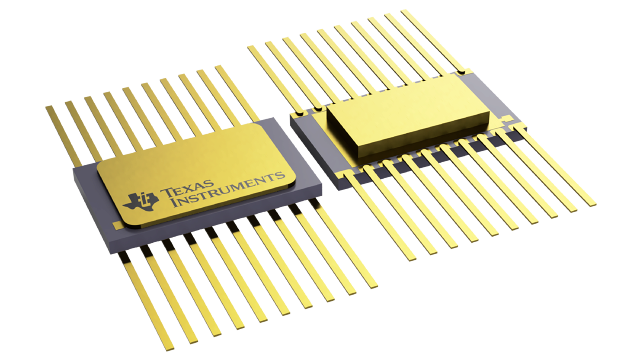

TPS50301SHKH Texas Instruments - Yeehing Electronics
1.6-V to 6.3-V INPUT, 3-A SYNCHRONOUS STEP DOWN CONVERTER
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2160.0 |
| 100 — 249 | 1980.0 |
| 250 — 999 | 1800.0 |
| 1,000 + | 1512.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | N |
| Mounting Style | SMD/SMT |
| Package / Case | CFP-20 |
| Output Voltage | 0.785 V to 5.5 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 6.3 V |
| Topology | Buck |
| Input Voltage MIN | 1.6 V |
| Switching Frequency | 1 MHz |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 210 C |
| Series | TPS50301-HT |
| Packaging | Tube |
| Input Voltage | 1.6 V to 6.3 V |
| Operating Temperature Range | - 55 C to + 210 C |
| Product | Voltage Regulators |
| Type | Step Down Converter |
| Brand | Texas Instruments |
| Development Kit | TPS50301HTEVM |
| Operating Supply Current | 5 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 1 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 1.6 V |
For more information, please refer to datasheet
Documents
| TPS50301SHKH Datasheet |
More Information
The TPS50301-HT is a 6.3-V, 3-A synchronous step-down converter, which is optimized for small designs through high efficiency and integrating the high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count, and a high switching frequency, reducing the inductors footprint. The devices are offered in a thermally enhanced 20-pin ceramic, dual in-line flatpack package.
