Texas Instruments
TPS50601HKH/EM
TPS50601HKH/EM
Regular price
$786.26 USD
Regular price
Sale price
$786.26 USD
Unit price
per
Couldn't load pickup availability
TPS50601HKH/EM Texas Instruments - Yeehing Electronics
Radiation-hardened QMLV, 3-V to 6.3-V input, 6-A synchronous step-down converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1123.228 |
| 100 — 249 | 1029.625 |
| 250 — 999 | 936.023 |
| 1,000 + | 786.26 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | N |
| Mounting Style | SMD/SMT |
| Package / Case | CFP-20 |
| Output Voltage | 0.785 V to 5.5 V |
| Output Current | 6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 6.3 V |
| Topology | Buck |
| Input Voltage MIN | 1.6 V |
| Switching Frequency | 100 kHz to 1 MHz |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS50601-SP |
| Input Voltage | 1.6 V to 6.3 V |
| Operating Temperature Range | - 55 C to + 125 C |
| Product | Voltage Regulators |
| Type | Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Operating Supply Current | 5 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 1 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 1.6 V |
For more information, please refer to datasheet
Documents
| TPS50601HKH/EM Datasheet |
More Information

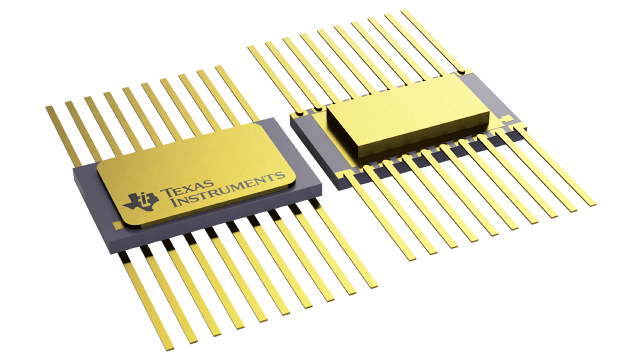

The TPS50601-SP is a radiation hardened, 6.3-V, 6-A synchronous step-down converter, which is optimized for small designs through high efficiency and integrating the high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count, and a high switching frequency, reducing the inductor's footprint. The devices are offered in a thermally enhanced 20-pin ceramic, dual in-line flatpack package.
