Texas Instruments
TPS51206DSQR
TPS51206DSQR
Couldn't load pickup availability
TPS51206DSQR Texas Instruments - Yeehing Electronics
2A Peak Sink/Source DDR Termination Regulator with VTTREF Buffered Reference for DDR2/3/3L/4
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.493 |
| 100 — 249 | 0.407 |
| 250 — 999 | 0.292 |
| 1,000 + | 0.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Output Current | 2 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

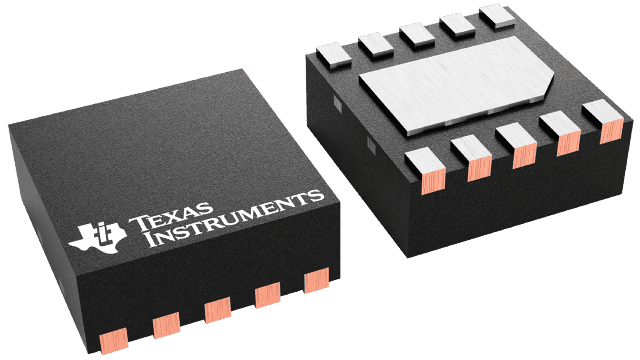

| Package / Case | WSON-10 |
| Type | Linear Regulator |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TPS51206 |
| Brand | Texas Instruments |
| Development Kit | TPS51206EVM-745 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 170 uA |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000413 oz |
For more information, please refer to datasheet
Documents
| TPS51206DSQR Datasheet |
More Information
The TPS51206 device is a sink and source double date rate (DDR) termination regulator with VTTREF buffered reference output. It is specifically designed for low-input voltage, low-cost, low-external component count systems where space is a key consideration. The device maintains fast transient response and only requires 1 × 10-µF of ceramic output capacitance. The device supports a remote sensing function and all power requirements for DDR2, DDR3 and Low-Power DDR3 (DDR3L), and DDR4 VTT bus. The VTT current capability is ±2-A peak. The device supports all of the DDR power states, putting VTT to High-Z in S3 state (suspend to RAM) and discharging VTT and VTTREF in S4 or S5 state (suspend to disk).
