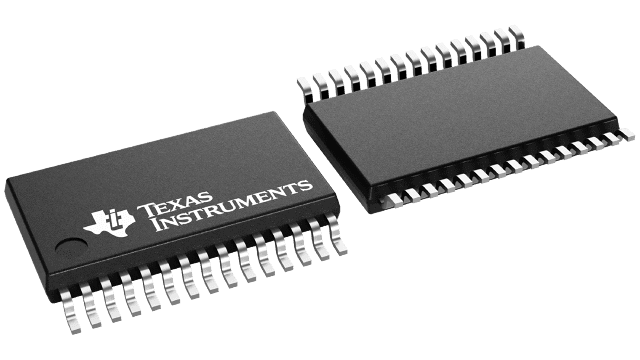

TPS5120MDBTREP Texas Instruments - Yeehing Electronics

Enhanced Product Dual Output Two-Phase Synchronous Buck Dc/Dc Controller

Pricing (USD)

Quantity	Unit Price
1 — 99	9.787
100 — 249	8.549
250 — 999	6.592
1,000 +	4.13

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Number of Outputs	2 Output
Input Voltage	4.5 V to 28 V
Output Voltage	0.9 V
Output Current	1.5 A
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	TSSOP-30
Packaging	Reel
Operating Temperature Range	- 55 C to + 125 C
Series	TPS5120-EP
Type	Synchronous Buck Controller, PWM DC to DC Controller
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	1.1 mA
Product Type	Switching Controllers
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Part # Aliases	V62/04645-02XE
Unit Weight	0.003439 oz

For more information, please refer to datasheet

Documents

TPS5120MDBTREP Datasheet

More Information

The TPS5120 is a dual channel, high-efficiency synchronous buck controller where the outputs run 180 degrees out of phase, which lowers the input current ripple, thereby reducing the input capacitance cost. The PWM/SKIP pin allows the operating mode to switch from PWM mode to skip mode under light load conditions. The skip mode enables a lower operating frequency and shortens the pulse width to the low-side MOSFET, increasing the efficiency under light load conditions. These two modes, along with synchronous-rectifier drivers, dead time, and very low quiescent current, allow power to be conserved and the battery life to be extended under all load conditions. The 1.5 A (typical) high-side and low-side MOSFET drivers on-chip are designed to drive less expensive N-channel MOSFETs. The resistorless current protection and fixed high-side driver voltage simplify the power supply design and reduce the external parts count. Each channel is independent, offering a separate controller, overcurrent protection, and standby control. Sequencing is flexible and can be tailored by choosing different softstart capacitor values. Other features, such as undervoltage lockout, power good, overvoltage, undervoltage, and programmable short-circuit protection promote system reliability.
