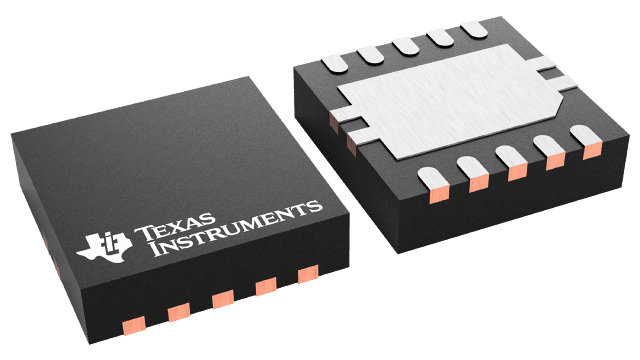

TPS51217DSCT Texas Instruments - Yeehing Electronics
3-V to 28-V, 20-A, synchronous D-CAP buck controller for notebook power
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.167 |
| 100 — 249 | 2.775 |
| 250 — 999 | 1.946 |
| 1,000 + | 1.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Switching Frequency | 340 kHz |
| Input Voltage | 3 V to 28 V |
| Output Voltage | 0.6 V to 2.6 V |
| Output Current | 20 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Power | 1.54 W |
| Series | TPS51217 |
| Type | Synchronous Step Down Controller |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 320 uA |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003527 oz |
For more information, please refer to datasheet
Documents
| TPS51217DSCT Datasheet |
More Information
The TPS51217 is a small-sized single buck controller with adaptive on-time D-CAP™ mode. The device is suitable for low output voltage, high current, PC system power rail and similar point-of-load (POL) power supply in digital consumer products. A small package with minimal pin-count saves space on the PCB, while a dedicated EN pin and pre-set frequency minimize design effort required for new designs. The skip-mode at light load condition, strong gate drivers and low-side FET RDS(on) current sensing supports low-loss and high efficiency, over a broad load range. The TRAN pin provides freedom of masking overvoltage protection, undervoltage protection and power-good signal during the transition period of dynamic output voltage change for modern GPU power supply applications. The conversion input voltage which is the high-side FET drain voltage ranges from 3 V to 28 V and the output voltage ranges from 0.6 V to 2.6 V. The device requires an external 5-V supply. The TPS51217 is available in a 10-pin SON package specified from –40°C to 85°C.
