TPS51275B-1RUKT Texas Instruments - Yeehing Electronics

5.5-V to 24-V, dual-synchronous buck controller with Out-of-Audio™ mode and 3.2 ms soft start

Pricing (USD)

Quantity	Unit Price
1 — 99	0.899
100 — 249	0.692
250 — 999	0.509
1,000 +	0.29

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

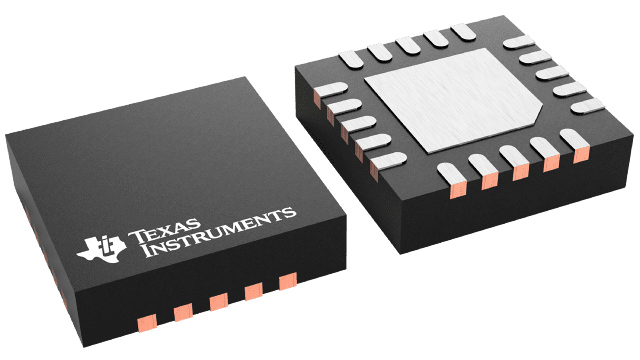

Package / Case	WQFN-20
Output Voltage	3.3 V, 5 V
Output Current	100 mA
Number of Outputs	2 Output
Input Voltage MAX	24 V
Topology	Buck
Input Voltage MIN	5 V
Switching Frequency	300 kHz, 355 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS51275B-1
Packaging	Reel
Input Voltage	5 V to 24 V
Operating Temperature Range	- 40 C to + 85 C
Type	Dual Synchronous Step-Down Controller
Brand	Texas Instruments
Shutdown	Shutdown
Moisture Sensitive	Yes
Operating Supply Current	860 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	5 V
Unit Weight	0.001344 oz

For more information, please refer to datasheet

Documents

TPS51275B-1RUKT Datasheet

More Information

The TPS51275B-1 device is a cost-effective, dual-synchronous buck controller targeted for notebook system-power supply solutions. The device has 5-V and 3.3-V low-dropout regulators (LDOs) and requires few external components. The 260-kHz VCLK output can be used to drive an external charge pump, generating gate drive voltage for the load switches without reducing the main converter efficiency. The TPS51275B-1 device supports high efficiency, fast transient response and provides a combined power-good signal. Adaptive on-time, D-CAP control provides convenient and efficient operation. The device operates with a supply input voltage ranging from 5 to 24 V and supports output voltages of 5 V and 3.3 V. The TPS51275B-1 device is available in a 20-pin, 3-mm × 3-mm, WQFN package and is specified from –40°C to 85°C.
