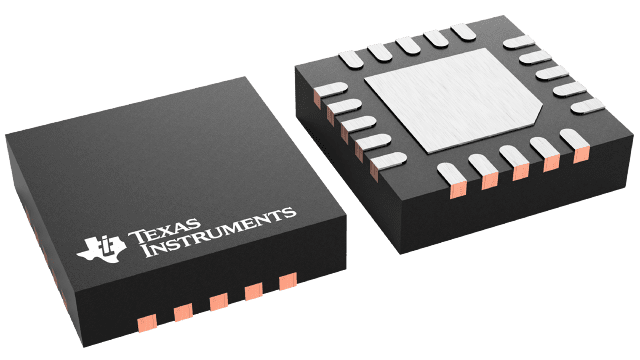

TPS51285ARUKT Texas Instruments - Yeehing Electronics

5-V to 24-V, dual-synchronous buck controller with 3.2 ms soft start

Pricing (USD)

Quantity	Unit Price
1 — 99	1.359
100 — 249	1.191
250 — 999	0.835
1,000 +	0.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Buck
Number of Outputs	2 Output
Switching Frequency	400 kHz, 475 kHz
Duty Cycle - Max	100 %
Input Voltage	5 V to 24 V
Output Voltage	3.3 V, 5 V
Output Current	20 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-20
Packaging	Reel
Isolation	Non-Isolated
Operating Temperature Range	- 40 C to + 85 C
Product	Switching Controllers
Series	TPS51285A
Brand	Texas Instruments
Shutdown	No Shutdown
Moisture Sensitive	Yes
Operating Supply Current	84 uA
Operating Supply Voltage	5 V to 24 V
Product Type	Switching Controllers
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.001344 oz

For more information, please refer to datasheet

Documents

TPS51285ARUKT Datasheet

More Information

The TPS51285A and TPS51285B are cost-effective, dual synchronous buck controllers with 5-V and 3.3-V LDOs, targeted for notebook system-power supply solutions. The device achieves low power consumption by the use of auto-skip and ULQ™ modes, which is beneficial for long battery life in system stand-by mode. The 256-kHz VCLK output is provided to drive an external charge pump, generating gate drive voltage for the load switches with minimum power consumption in the main converter. The device employs adaptive on-time D-CAP™ mode control which enables fast load transient response without external compensation network. The TPS51285A/B operates with supply input voltage ranging from 5V to 24V and supports output voltages of 5 V and 3.3 V. The TPS51285A and TPS51285B are available in a 20-pin 3 x 3 (mm) QFN package and is specified from –40°C to 85°C.
