TPS51285BRUKT Texas Instruments - Yeehing Electronics

5-V to 24-V, dual-synchronous buck controller with ultra-low quiescent current

Pricing (USD)

Quantity	Unit Price
1 — 99	1.359
100 — 249	1.191
250 — 999	0.835
1,000 +	0.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Buck
Number of Outputs	2 Output
Switching Frequency	400 kHz, 475 kHz
Input Voltage	5 V to 24 V
Output Voltage	3.3 V, 5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

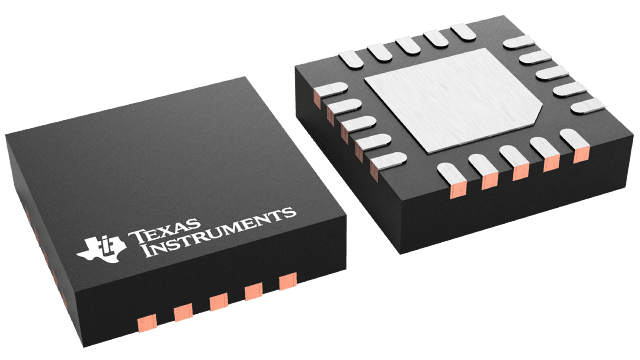

Package / Case	WQFN-20
Packaging	Reel
Description/Function	Ultra-low quiescent dual synchronous step-down controller
Operating Temperature Range	- 40 C to + 85 C
Output Type	Fixed
Product	Synchronous Boost or Buck Controller
Series	TPS51285B
Type	Dual Synchronous Step-Down Controller
Brand	Texas Instruments
Shutdown	Shutdown
Moisture Sensitive	Yes
Operating Supply Current	84 uA
Operating Supply Voltage	5 V to 24 V
Product Type	Switching Controllers
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.001344 oz

For more information, please refer to datasheet

Documents

TPS51285BRUKT Datasheet

More Information

The TPS51285A and TPS51285B are cost-effective, dual synchronous buck controllers with 5-V and 3.3-V LDOs, targeted for notebook system-power supply solutions. The device achieves low power consumption by the use of auto-skip and ULQ™ modes, which is beneficial for long battery life in system stand-by mode. The 256-kHz VCLK output is provided to drive an external charge pump, generating gate drive voltage for the load switches with minimum power consumption in the main converter. The device employs adaptive on-time D-CAP™ mode control which enables fast load transient response without external compensation network. The TPS51285A/B operates with supply input voltage ranging from 5V to 24V and supports output voltages of 5 V and 3.3 V. The TPS51285A and TPS51285B are available in a 20-pin 3 x 3 (mm) QFN package and is specified from –40°C to 85°C.
