TPS51315RGFT Texas Instruments - Yeehing Electronics

3-V to 14-V, 10-A synchronous buck converter with D-CAP control

Pricing (USD)

Quantity	Unit Price
1 — 99	6.493
100 — 249	5.294
250 — 999	4.161
1,000 +	2.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

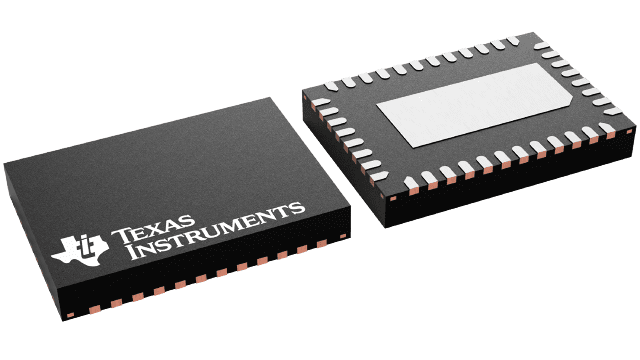

Package / Case	VQFN-40
Output Voltage	0.75 V to 5.5 V
Output Current	10 A
Number of Outputs	1 Output
Input Voltage MAX	14 V
Topology	Buck
Input Voltage MIN	3 V
Switching Frequency	250 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TPS51315
Packaging	Reel
Input Voltage	3 V to 14 V
Operating Temperature Range	- 40 C to + 125 C
Product	Voltage Regulators
Type	Voltage Converter
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.003668 oz

For more information, please refer to datasheet

Documents

TPS51315RGFT Datasheet

More Information

The TPS51315 is a D-CAP™ Mode, 10-A, synchronous step-down converter with integrated MOSFETs. The combination of D-CAP™ mode and on-board MOSFETs provides fast transient response performance with ease of use, less external component count and small footprint. Externally adjustable switching frequency allows optimal design between component size and efficiency tradeoff. Ceramic output capacitors can be employed by adding a few extra components. The TPS51315 is available in the thermally-efficient 40-pin, 5 mm × 7 mm, QFN package and is specified from –40°C to 85°C ambient.
