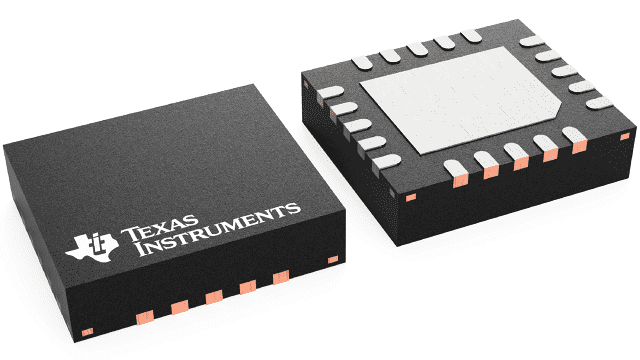

TPS51317RGBT Texas Instruments - Yeehing Electronics
3.3V / 5V Input, 6A, D-CAP+ Mode Synchronous Step-Down Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.06 |
| 100 — 249 | 2.495 |
| 250 — 999 | 1.961 |
| 1,000 + | 1.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-20 |
| Output Voltage | 0.6 V to 2 V |
| Output Current | 6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5 V |
| Topology | Buck |
| Input Voltage MIN | 3.3 V |
| Switching Frequency | 1.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS51317 |
| Packaging | Reel |
| Input Voltage | 3.3 V to 5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.1 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
| TPS51317RGBT Datasheet |
More Information
The TPS51317 is a fully integrated synchronous buck regulator employing D-CAP+™ mode architechture. It is used for 3.3-V and 5-V step-down systems where space is a consideration, high-performance and optimized component count are required.
