Description

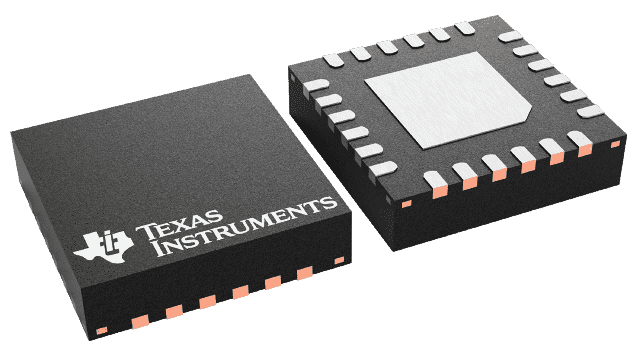

TPS51461RGER Texas Instruments - Yeehing Electronics
3.3V to 5V Input, 6A, D-CAP+ Mode Synchronous Step-Down Converter with 2-Bit VID
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.255 |
| 100 — 249 | 4.284 |
| 250 — 999 | 3.367 |
| 1,000 + | 2.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Output Voltage | 0.8 V to 6.5 V |
| Output Current | 6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 3.3 V |
| Switching Frequency | 1 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS51461 |
| Packaging | Reel |
| Input Voltage | 3.3 V to 5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.1 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001926 oz |
For more information, please refer to datasheet
Documents
| TPS51461RGER Datasheet |
More Information
The TPS51461 is a fully integrated synchronous buck regulator employing D-CAP+. It is used for up to 5-V step-down where system size is at its premium, performance and optimized BOM are must-haves.
