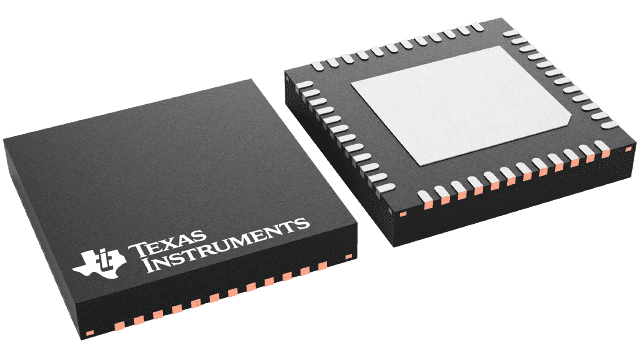

TPS51650RSLR Texas Instruments - Yeehing Electronics
Dual Channel (3-Phase CPU / 2-Phase GPU) SVID, D-CAP+ Step-Down Controller for IMVP-7 Vcore
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.72 |
| 100 — 249 | 3.848 |
| 250 — 999 | 3.024 |
| 1,000 + | 1.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Buck |
| Number of Outputs | 2 Output |
| Output Voltage | - 0.3 V to 1.8 V |
| Minimum Operating Temperature | - 10 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-48 |
| Packaging | Reel |
| Operating Temperature Range | - 10 C to + 105 C |
| Series | TPS51650 |
| Type | Voltage Mode PWM Controllers |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 5.5 mA |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Part # Aliases | FX007 |
| Unit Weight | 0.004938 oz |
For more information, please refer to datasheet
