Texas Instruments
TPS51727RHAR
TPS51727RHAR
Couldn't load pickup availability
TPS51727RHAR Texas Instruments - Yeehing Electronics
Dual-Phase, D-CAP+™ Mode Step Down Power Management IC for 50A+ Applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.541 |
| 100 — 249 | 2.227 |
| 250 — 999 | 1.561 |
| 1,000 + | 0.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Switching Frequency | 500 kHz |
| Input Voltage | 4.5 V to 28 V |
| Output Current | 8 A |
| Minimum Operating Temperature | - 10 C |
| Maximum Operating Temperature | + 100 C |
| Mounting Style | SMD/SMT |

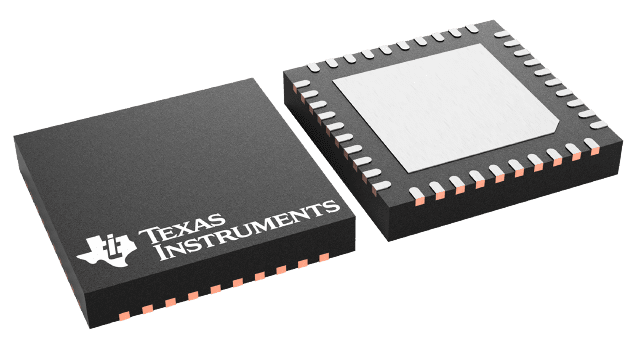

| Package / Case | VQFN-40 |
| Packaging | Reel |
| Operating Temperature Range | - 10 C to + 100 C |
| Series | TPS51727 |
| Type | DC/DC Controller (External Switch) |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003668 oz |
For more information, please refer to datasheet
Documents
| TPS51727RHAR Datasheet |
More Information
The TPS51727 is a complete, step down controller with integrated gate drivers. The PCNT pin enables operation in dual or single-phase mode to optimize efficiency depending on the load requirements. The advanced D-CAP+ architecture provides fast transient response with minimum output capacitance. The DAC supports VID-on-the-fly transitions to optimize the output voltage to the operating state of the system to meet idle power requirements. The auto-skip feature of the TPS51727 optimizes light-load efficiency in both single and dual phase operation. System management features include an adjustable thermal sensor, output power monitoring and sleep state controls. Adjustable control of VOUT slew rate and voltage positioning are provided. In addition, the TPS51727 includes two high-current MOSFET gate drivers to drive high and low side N-channel MOSFETs with exceptionally high speed and low switching loss The PCNT and VID0 through VID4, pins have flexible LV I/O thresholds that enable interface with logic voltages from 1.0 V to 3.6 V. The TPS51727 is packaged in a space saving, thermally enhanced, RoHS compliant 40-pin QFN and is rated to operate from -10°C to 100°C.
