Texas Instruments

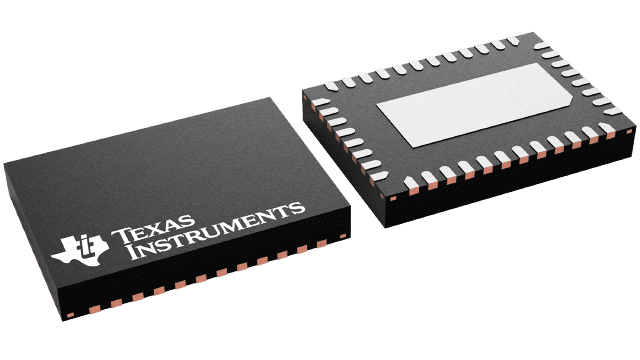

TPS53315RGFT
TPS53315RGFT
Regular price
$2.24 USD
Regular price
Sale price
$2.24 USD
Unit price
per
Couldn't load pickup availability
TPS53315RGFT Texas Instruments - Yeehing Electronics
3-V to 15-V, 12-A synchronous buck converter with optimized light load efficiency
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.877 |
| 100 — 249 | 4.791 |
| 250 — 999 | 3.766 |
| 1,000 + | 2.24 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Output Voltage | 0.6 V to 5.5 V |
| Output Current | 12 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 15 V |
| Topology | Buck |
| Input Voltage MIN | 3 V |
| Switching Frequency | 1.07 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS53315 |
| Packaging | Reel |
| Input Voltage | 3 V to 15 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 320 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SWIFT |
| Unit Weight | 0.003668 oz |
For more information, please refer to datasheet
Documents
| TPS53315RGFT Datasheet |
More Information
TPS53315 is a D-CAP™ mode, 12-A synchronous switcher with integrated MOSFETs. It is designed for ease of use, low external component count, and small package power systems.
