Texas Instruments
TPS53317RGBT
TPS53317RGBT
Regular price
$1.69 USD
Regular price
Sale price
$1.69 USD
Unit price
per
Couldn't load pickup availability

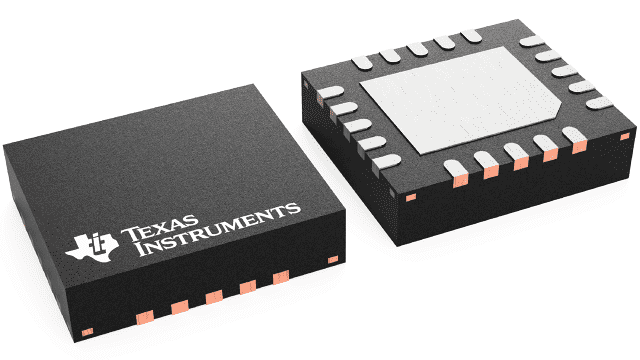

TPS53317RGBT Texas Instruments - Yeehing Electronics
Low Input Voltage, 6A Synchronous Step-Down SWIFT™ Converter for DDR Memory Termination
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.445 |
| 100 — 249 | 3.624 |
| 250 — 999 | 2.848 |
| 1,000 + | 1.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-20 |
| Output Voltage | 0.6 V to 2 V |
| Output Current | 6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 6 V |
| Topology | Buck |
| Input Voltage MIN | 1 V |
| Switching Frequency | 600 kHz, 1 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS53317 |
| Packaging | Reel |
| Input Voltage | 1 V to 6 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Step-Down Converter |
| Brand | Texas Instruments |
| Development Kit | TPS53317EVM-750 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 320 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 1 V |
| Tradename | SWIFT |
| Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
| TPS53317RGBT Datasheet |
More Information
The device is a FET-integrated synchronous buck regulator designed mainly for DDR termination. It can provide a regulated output at ½ VDDQ with both sink and source capability. The device employs D-CAP+ mode operation that provides ease of use, low external component count and fast transient response. The device can also be used for other point-of-load (POL) regulation applications requiring up to 6 A. In addition, the device supports full, 6-A, output sinking current capability with tight voltage regulation.
