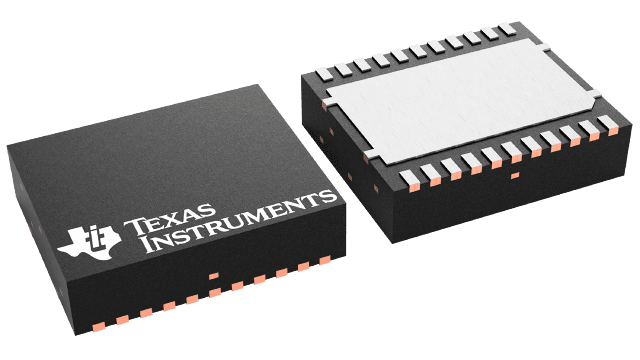

TPS53355DQPR


YeeHing #: Y012-TPS53355DQPR
Inventory: 8000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS53355DQPR Texas Instruments - Yeehing Electronics

High-efficiency 1.5-V to 15-V, 30-A synchronous SWIFT™ buck converter with eco-mode

Pricing (USD)

Quantity Unit Price
1 — 99 None
100 — 249 None
250 — 999 None
1,000 + None

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS E
Mounting Style SMD/SMT
Package / Case LSON-CLIP-22
Output Voltage 0.6 V to 5.5 V
Output Current 30 A
Number of Outputs 1 Output
Input Voltage MAX 15 V
Topology Buck
Input Voltage MIN 1.5 V
Switching Frequency 250 kHz to 1 MHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Series TPS53355
Packaging Reel
Input Voltage 1.5 V to 15 V
Operating Temperature Range - 40 C to + 85 C
Product Voltage Regulators
Type Voltage Converter
Brand Texas Instruments
Development Kit TPS53355EVM-743
Moisture Sensitive Yes
Operating Supply Current 320 uA
Product Type Switching Voltage Regulators
Factory Pack Quantity 2500
Subcategory PMIC - Power Management ICs
Tradename SWIFT
Part # Aliases HPA01111DQPR
Unit Weight 0.005362 oz

For more information, please refer to datasheet

Documents

TPS53355DQPR Datasheet

More Information

The TPS53355 is a D-CAP™ mode, 30-A synchronous switcher with integrated MOSFETs. It is designed for ease of use, low external component count, and space-conscious power systems.
