TPS53625RSMT Texas Instruments - Yeehing Electronics

2-Phase, D-CAP+™ buck controller for VR12.0 microserver

Pricing (USD)

Quantity	Unit Price
1 — 99	3.036
100 — 249	2.475
250 — 999	1.945
1,000 +	0.68

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Buck
Number of Outputs	1 Output
Switching Frequency	300 kHz to 1 MHz
Input Voltage	4.5 V to 24 V
Output Voltage	500 mV to 1.52 V
Output Current	60 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Mounting Style	SMD/SMT

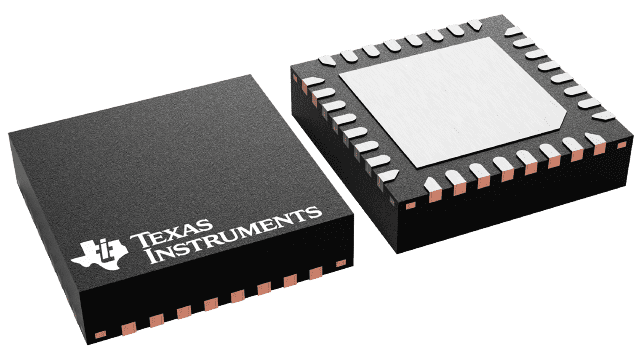

Package / Case	VQFN-32
Packaging	Reel
Operating Temperature Range	- 40 C to + 105 C
Product	Voltage Controllers
Series	TPS53625
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	10 mA
Operating Supply Voltage	4.5 V to 24 V
Product Type	Switching Controllers
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.002547 oz

For more information, please refer to datasheet

Documents

TPS53625RSMT Datasheet

More Information

The TPS53625 device is a driverless, fully SVID compliant, VR12.0 step-down controller. Advanced control features such as D-CAP+ architecture with overlapping pulse support undershoot reduction (USR) and overshoot reduction (OSR) provide fast transient response, lowest output capacitance and high efficiency. The TPS53625 device also supports single-phase operation in CCM or DCM for light-load efficiency. The TPS53625 device integrates the full complement of VR12.0 I/O features including VR_READY (PGOOD), ALERT and VR_HOT. The SVID interface address allows programming from 0 to 7. Adjustable control of VOUT slew rate and voltage positioning round out the VR12.0 features. Paired with the TPS51604 FET gate driver, the solution delivers exceptionally high speed and low switching loss. The TPS53625 device works with selected TI power stage products for optimum efficiency as well as DrMOS products. The TPS53625 device operates with a default boot voltage of 1 V. Applications can override the default boot voltage by including an external resistor divider in the design.The TPS53625 device package is a space saving, thermally enhanced 32-pin VQFN package that operates from –40°C to 105°C.
