TPS53679RSBT Texas Instruments - Yeehing Electronics

Dual-Channel 6+1/5+2 VR13 D-CAP+™ Step-Down Multiphase Controller With NVM and PMBus

Pricing (USD)

Quantity	Unit Price
1 — 99	10.687
100 — 249	8.712
250 — 999	6.848
1,000 +	2.74

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT

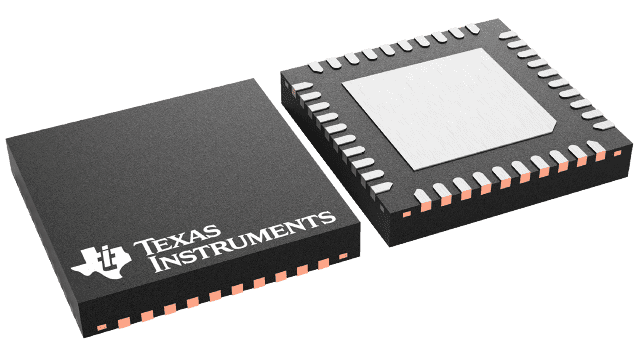

Package / Case	WQFN-40
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Series	TPS53679
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Tradename	D-CAP+

For more information, please refer to datasheet

Documents

TPS53679RSBT Datasheet

More Information

The TPS53679 is a fully VR13 SVID compliant step-down controller with dual channels, built-in non-volatile memory (NVM), and PMBus™ interface, and is fully compatible with TI NexFET ™power stage. Advanced control features such as D-CAP+™ architecture with undershoot reduction (USR) provide fast transient response, low output capacitance, and good current sharing. The device also provides novel phase interleaving strategy and dynamic phase shedding for efficiency improvement at different loads. Adjustable control of VCORE slew rate and voltage positioning round out the Intel® VR13™ features. In addition, the device supports the PMBus communication interface for reporting the telemetry of voltage, current, power, temperature, and fault conditions to the systems. All programmable parameters can be configured by the PMBus interface and can be stored in NVM as the new default values to minimize the external component count.
