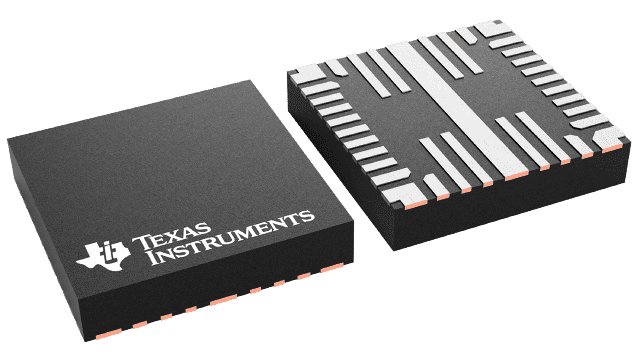

TPS53820RWZR Texas Instruments - Yeehing Electronics
Integrated step-down converter with SVID for Intel CPU power
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.728 |
| 100 — 249 | 6.3 |
| 250 — 999 | 4.952 |
| 1,000 + | 2.94 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS53820RWZR Datasheet |
More Information
The TPS53820 device is D-CAP+ mode integrated step-down converter for low current SVID rails of Intel CPU power supply. It provides up to two outputs to power the low current SVID rails such as VCCANA (5.5 A) and P1V8 (4 A). The device employs D-CAP+ mode control to provide fast load transient performance. Internal compensation allows ease of use and reduces external components.
