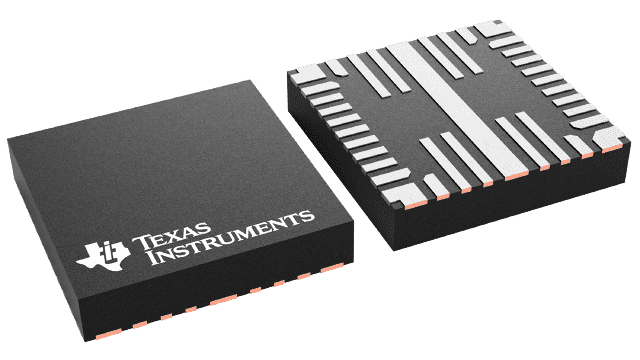

TPS53830RWZR Texas Instruments - Yeehing Electronics

High current PMIC for DDR5 server DIMMs

Pricing (USD)

Quantity	Unit Price
1 — 99	7.36
100 — 249	6.0
250 — 999	4.716
1,000 +	2.80

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS53830RWZR Datasheet

More Information

The TPS53830 is D-CAP+™ mode integrated step-down converter for DDR5 on-DIMM power supply. It provides VDD, VDDQ and VPP voltages to the DRAM chips on the DIMM module with configurable current capability. The high-current rail can be configured to 2-phase or 2 outputs to supply up to 12 A (or 6 A + 6 A) current with D-CAP+™ mode control. The converter also employs internal compensation for ease of use and reduce external components.
