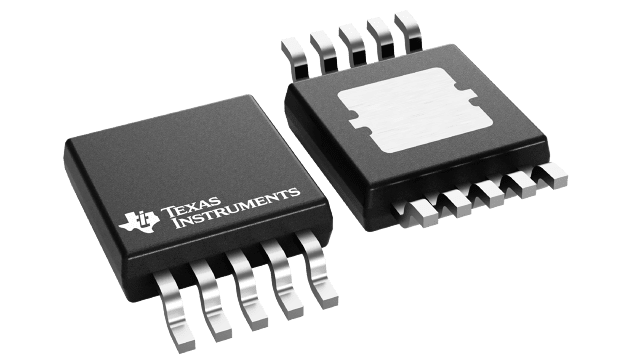

TPS5401DGQR Texas Instruments - Yeehing Electronics
3.5V to 42V Input, 0.5 A Step Down Converter
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.519 |
100 — 249 | 1.254 |
250 — 999 | 0.901 |
1,000 + | 0.82 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | MSOP-PowerPad-10 |
Output Voltage | 0.8 V to 39 V |
Output Current | 500 mA |
Number of Outputs | 1 Output |
Input Voltage MAX | 42 V |
Topology | Buck |
Input Voltage MIN | 3.5 V |
Switching Frequency | 581 kHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 150 C |
Series | TPS5401 |
Packaging | Reel |
Input Voltage | 3.5 V to 42 V |
Operating Temperature Range | - 40 C to + 150 C |
Product | Voltage Regulators |
Type | Voltage Converter |
Brand | Texas Instruments |
Development Kit | TPS5401EVM-708 |
Operating Supply Current | 116 uA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Tradename | SWIFT |
Unit Weight | 0.000829 oz |
For more information, please refer to datasheet
Documents
TPS5401DGQR Datasheet |
More Information
The TPS5401 device is a 42-V, 0.5-A, step-down regulator with an integrated high-side MOSFET. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the supply current to 116 µA when outputting regulated voltage with no load. Using the enable pin, shutdown supply current is reduced to 1.3 µA when the enable pin is low.
